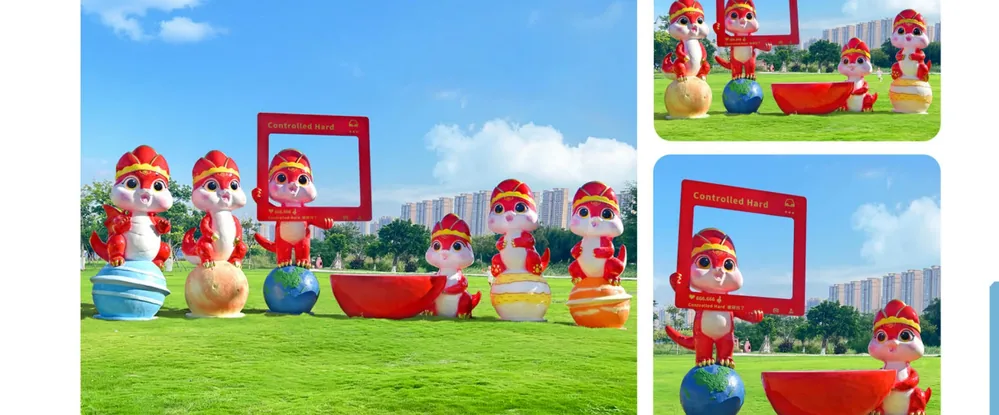

Cartoon Dragon Mascot Sculpture Installation
This cartoon dragon mascot sculpture is built as a custom fiberglass sculpture for theme parks, gardens, malls, and public plazas. A typical single-piece unit at 150 to 200 cm tall runs about USD 1,200 to 5,000 depending on detail and armature. We make every piece to order from your drawings or reference photos, with a mold cost of USD 1,200 to 1,500 for a standard single-piece shape.
Design and customization
You send front, side, and three-quarter views, or clear reference photos with key dimensions. Our modelers scale the dragon to your site, adjust the pose, headband, globe base, and facial expression, then send a rendering for approval before tooling starts. Sizes range from a 60 cm tabletop figure to a 4 m landmark piece. Multi-character groups, such as two or three dragons on one globe, are quoted as separate molded parts with a shared steel base. FibraCraft has produced 500+ installed projects worldwide, including 50+ in the USA, so we are used to US site plans, inch dimensions, and ADA clearance checks.
Build and materials
The shell is marine-grade unsaturated polyester resin with chopped strand mat and woven roving, hand laid over a welded steel internal armature. A UV-stable gelcoat goes on first, so color sits in the surface rather than only on top. Stainless hardware is used at all exposed connections. Outdoor service life is 10 to 30+ years, with a repaint or re-coat cycle of 5 to 7 years. The armature is engineered for your wind load and anchoring method, with a base plate pattern supplied for your concrete or structural engineer.
- Hand lay-up FRP shell, 4 to 8 mm typical wall thickness
- Welded steel armature, primed and sealed inside the shell
- Stainless bolts and anchor templates for site fixing
- Mold cost USD 1,200 to 1,500 for a typical single-piece sculpture
Finishes, color, and site requirements
Any Pantone shade is matched to 98% accuracy, with an automotive-grade polyurethane topcoat in gloss or matte. Eyes, teeth, and headband details can be painted or molded in. For installation, provide a level concrete pad or structural base, a power source if you want internal LED lighting, and the final anchor layout. Small pieces up to about 2 m can be surface mounted with a hidden base plate. Larger pieces ship in two or three sections with a bolt-together joint and a site assembly drawing.
Budget and lead time
Standard pieces take 3 to 6 weeks in production, and oversized or multi-piece installations take 12 to 16 weeks. Sea freight door-to-door DDP to the USA runs 5 to 9 weeks and is about 80% cheaper than air; air freight is 7 to 10 days. Payment is 30% deposit, balance before shipment, and the warranty is 12 months against manufacturing defects. Cost moves with size, surface detail, armature complexity, finish, and freight volume. Send your drawings to request a quote and we return an itemized USD quote within 24 hours.
Technical Specifications
| Material | FRP / Fiberglass |
| Dimensions | Custom sizes available |
| Build Method | Hand lay-up FRP shell over a welded steel armature, molded from your drawings or reference photos, with a stainless anchor base |
| Surface Finish | Automotive-grade polyurethane topcoat in gloss or matte, with painted or molded details |
| Color Matching | Any Pantone shade matched to 98% accuracy |
| Weight | Approximately 40 to 90 kg for a 150 to 200 cm single piece, depending on armature |
| Recommended Use | Theme parks, gardens, malls, public spaces |
| Minimum Order | 1 piece |
| Lead Time | 3 to 6 weeks for standard pieces, 12 to 16 weeks for oversized or multi-piece installations |
| Export Packing | Export crate with foam padding, steel frame bracing, and bolt-on section labels for site assembly |
| Shipping to USA | Sea freight door-to-door DDP to the USA in 5 to 9 weeks, or air freight in 7 to 10 days |
| Warranty | 12 months against manufacturing defects |
Frequently Asked Questions
What size dragon can you make, and how does size affect price?
We build from about 60 cm to 4 m tall for a single piece, and larger multi-piece installations on request. A small single piece typically falls in the USD 1,200 to 5,000 band. Mid-size installations run USD 4,500 to 12,000, and large multi-piece projects USD 30,000 to 150,000. Mold cost is USD 1,200 to 1,500 for a typical single-piece shape.
How is the sculpture anchored, and what site work do we need?
We supply a steel base plate with stainless anchors and a layout drawing. You need a level concrete pad or structural base designed for your local wind load. Pieces up to about 2 m usually surface mount with hidden fixings. Larger pieces ship in two or three sections with bolt-together joints. Production takes 3 to 6 weeks for standard sizes and 12 to 16 weeks for oversized builds.
How does it hold up outdoors, and how often do we repaint?
The shell uses marine-grade resin with a UV-stable gelcoat and an automotive-grade polyurethane topcoat, rated for 10 to 30+ years outdoors. Plan a repaint or re-coat every 5 to 7 years. Color is matched to 98% accuracy against any Pantone shade. Sea freight to the USA takes 5 to 9 weeks door-to-door DDP and costs about 80% less than air.
Shipping to the USA
We ship to all 50 US states via sea freight (LCL or FCL) and air freight. Complete customs documentation — commercial invoice, packing list, bill of lading, and certificate of origin — provided with every shipment. Import duties and taxes are the buyer's responsibility.
Typical shipping: 25–35 days by sea (to Los Angeles, Long Beach, or New York ports) · 7–10 days by air (to any major US airport)
